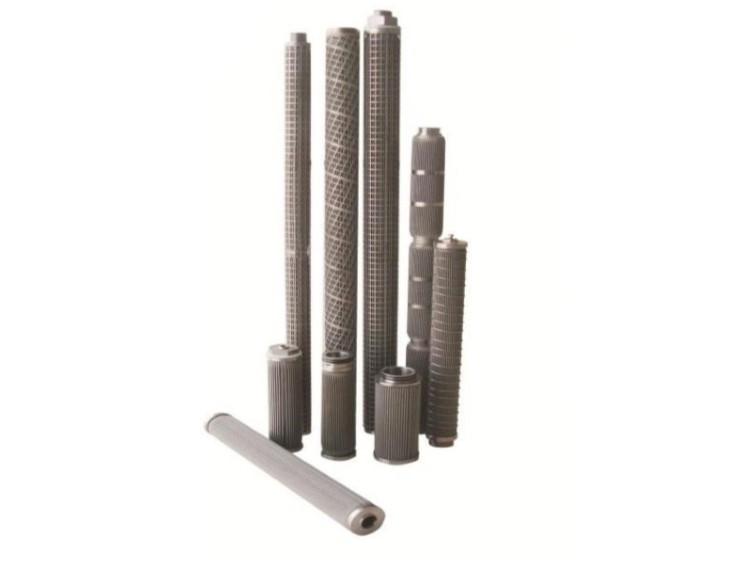

Stainless steel wire sintering filter is used for the filtration of non-woven equipments.

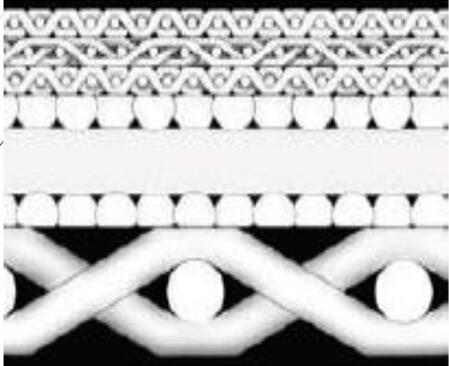

Filter core structure: five-layer network composite sintering (the external supporting skeleton can be supported when the pressure is large)

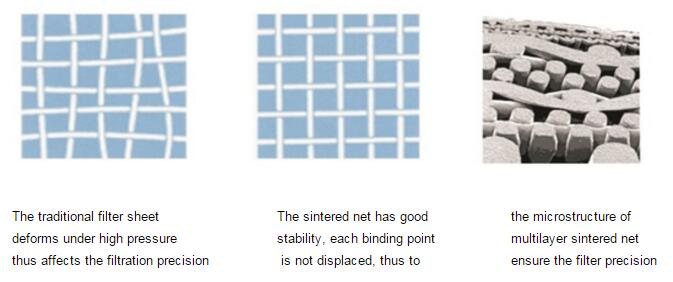

Advantages: uniform filtration clearance, stable precision, easy to wash, firm wire mesh, high temperature and high pressure resistance. Washable without deformation. The suitable sintering filter can be made according to the size of the customer's spunlace machine.

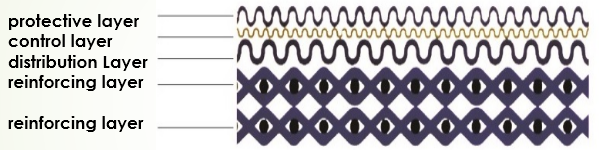

We supply various kind of sintered metal net, the multi-layer sintered mesh is of stainless steel net or sintered metal fiber felt (ranging from 2-50 layers). The 5-layer sintered net for example, is a normal type, it has 2 reinforcing layers, a distribution layer, a control layer, and a protective layer, stacking together and sintered at high temperature, then pressurized, is widely used in high temperature under high pressure and corrosion conditions, such as a polymer melt, sewage,chemicals and other filters.

In addition to the normal round and square sintered net, we can also process at customer demand or sample to design and process special sintered net, which max. size is up 650mmx1200mm, with filtration precision at 0.5μm - 200μm.The most typical and widely used filter cartridge type is from 5μm - 40μm precision sintered net in a cylindrical shape.
