Trützschler Nonwovens – AquaJet spunlace machine

Trützschler Nonwovens has accumulated successful experience in providing chemical bonding, Thermo-bonding and AquaJet spunlace line for decades, so it is a global leader in this field of technology. Trützschler Nonwovens has already provided 1.000 nonwoven lines, including about 90 spunlace lines, the maximum working width is 5.400 mm. At front of the market, Trützschler Nonwovens can provide the complete processing line-from fiber to the winding of the final products, including spunlace system and dryer. Together with the Textile Sector, also can provide from the bleaching to spunlace processing line of the cotton fiber.

Trützschler Nonwovens - the benefit of the AquaJet:

High productivity

Low energy consumption

High quality

Exquisite making equipment

Patented the technology of the production of multi-layers pulp products

Ideal strength and softness of the products

Can produced the different kinds of the perforating and structuring products

Low maintance

Short downtime when change the jet strip and drum

Customize the filter system

Friendly to the environment

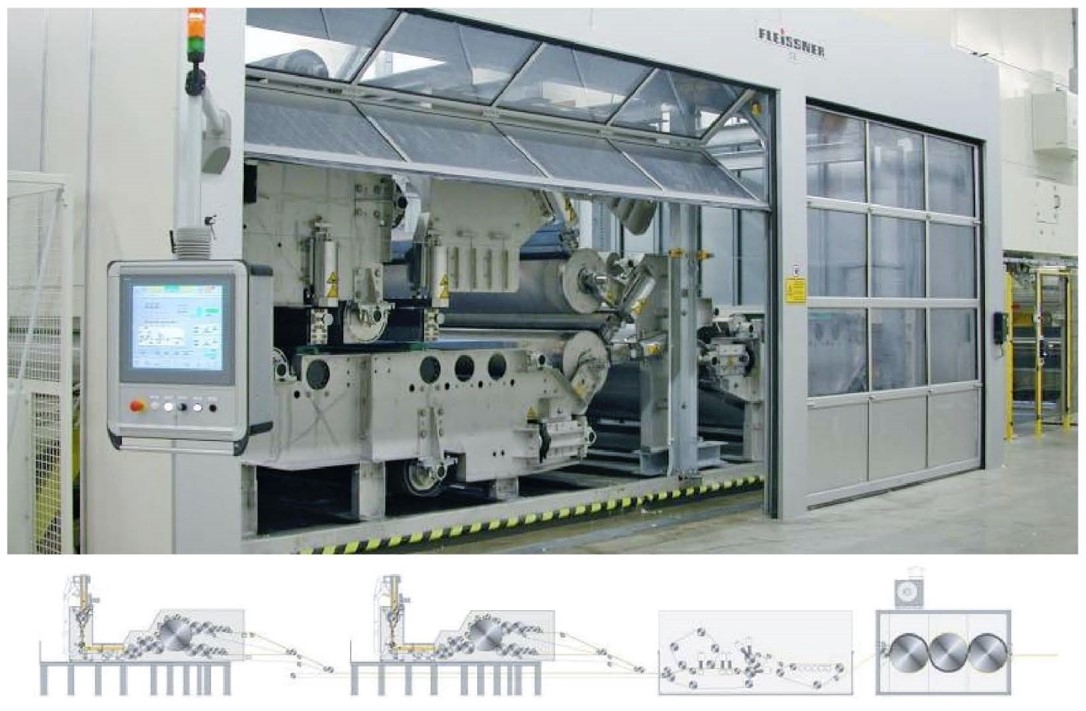

The modular AquaJet
The original Fleissner AquaJet is Trützschler Nonwovens a highly advanced and proven spunlacing unit. Each AquaJet is tailor-made to the specific technical product and process requirements of the individual investment. What happens when requirements change?
The modular AquaJet is designed for answering this question. It offer above all, flexibility. The core consists of 2 spunlace drums that can be combined with one of three compaction systems and one of four dewatering types. So the modular AquaJet provides the best overall solution for individual applications: If a product range is to be changed, it can be converted without much effort. For instance, to process higher web weights or realise higher line speeds.

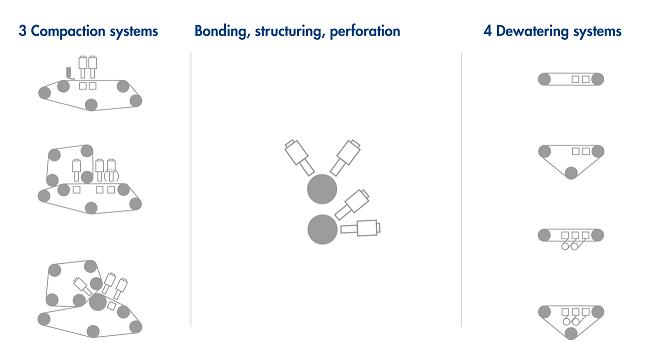

Picture 1: AquaJet modules including belt-strip compaction

Approximately 10% less energy consumption with belt-strip compaction
Trützschler Nonwovens developed a new, energy-efficient compaction system for the AquaJet. The belt-stripü compaction system can be used for processing standard materials up to 100 gms.
Tehcnical details: the rolls and the compaction belt needed for both belt-belt and belt-drum compaction are no longer needed, so the number of drives is reduced. However, more importantly, the first jet head for wetting and pre-entangling can be omitted which both reduces energy and water consumption. The system is still being extensively tested concerning its potential for a broader range of web weights and line speeds.

A specialised mother roll winder for spunlacing lines
Hydroentangled wipe substrates are often produced on large systems. For this area of application, the master roll winder SkyWind has been developped. Equipped with surface drive, the unit is characterised by robustness, simple operation and high availability.
SkyWind is an alternative to the proven, fully automatic turret disc winder BWT 202 with axial and surface drive and inline slitting capability.

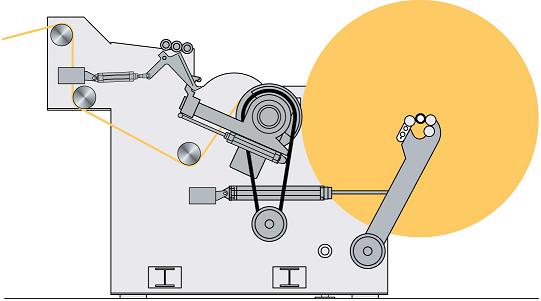

         Picture 2: Illustration of SkyWind
